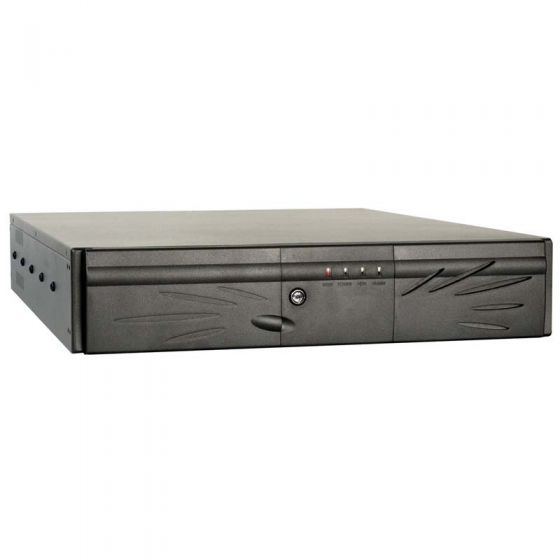

RACK-2100GB
- RoHS compliant design
- Stylish front panel with keylock
- 1 x 3.5” FDD, 1 x 5.25”, 1 x 3.5” HDD drive capacity
- 2 x 8cm cooling fans with easy replaceable fan filter
| SBC Form Factor | Full-size, slot CPU card |
| SBC Form Factor | PICMG 1.3 |
| Drive Bays | 1 x front accessible 3.5" 1 x 3.5" HDD 1 x 5.25" |
| Cooling Fans | 2 x 8 cm |
| Expansion Slots | 6 slots |
| Indicators | Power, HDD |
| Buttons | Power switch, reset button |
| Construction | Heavy duty metal with plastic front panel |
| Color | Black |
| Operating Temperature | 0℃~50℃ |
| Operation Humidity | 10% ~ 90% |
| Dimensions (DxWxH) | 576.9mm x 431mm x 88mm |
| Weight (Net/Gross) | 7.8kg / 11.8kg |
Power Supplies |
|||||||||||||||||||
| Model No. | Type | Input | Watt | ||||||||||||||||
| ACE-925AP-U-RS | AT | AC | 250W | ||||||||||||||||
| ACE-935AL-RS | AT | AC | 300W | ||||||||||||||||
| ACE-A130B-R10 | ATX | AC | 300W | ||||||||||||||||
| ACE-A140A-S-R10 | ATX | AC | 400W | ||||||||||||||||
| RACK-2100GB/A130B | 2U 6-slot full-size rackmount chassis for PICMG 1.3 SBC, 2 x 8 cm fan, with ACE-A130B-RS (300W ATX model),Black, RoHS |
