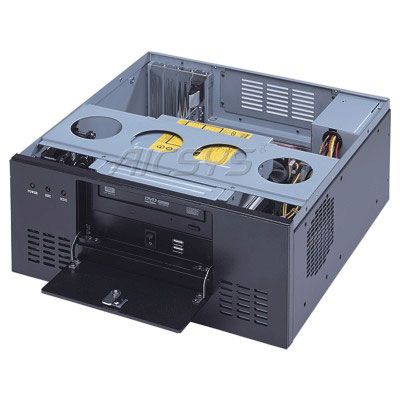

WMC-402M (Micro-ATX Chassis)
Compact chassis with 2 drive bays, Low-Noise fan, 300W ATX power supply for Micro-ATX motherboard,designed for Digital Video Recording Management
- Heavy duty steel construction shoebox industrial chassis can be mounted vertically or horizontally
- One 5.25" CD-ROM drive-bay and one 3.5" drive bay for HDD
- 8cm low-noise ball bearing fan with air ventilation for excellent airflow
- 300W Micro ATX power supply (80PLUS Certified)
- Modular design for easy installation and maintenance
| Construction | Heavy Duty Steel |
| SBC Form Factor | Micro ATX motherboard |
| Drive Bays | (1) 5.25" CD-ROM (1) 3.5" internal drive for HDD |
| Cooling Fans | One 8cm low-noise ball bearing fan |
| Ports | 2 USB Ports on Front Panel |
| Expansion | Supports up to 4-slots |
| Indicators | On/off LED HDD LED One Recording in progress Defined LED |
| Switches | Power On/Off switch |
| Operating Temperature | 0~55 ºC |
| Color | Black |
| Weight (Net/Gross) | 8.1kg/17.9lbs |
| Dimensions | 337 (W) x 339.8 (D) x 136 (H) mm 13.3 (W) x 13.4 (D) x 5.4 (H) inches |
| Power Supply | 300W Micro ATX active PFC power supply |
| WMC-402M-300W | Compact chassis with (2) drive bays
