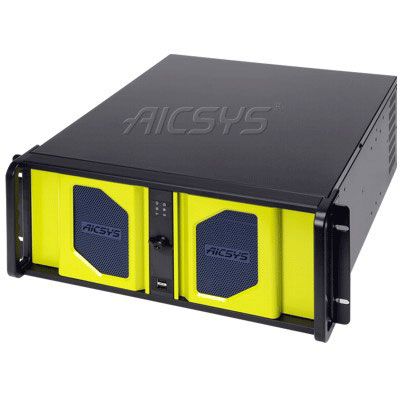

RCK-407MA
4U Rackmount chassis for ATX Motherboard with (4) 5.25" and (1) 3.5" FDD and (2) internal HDD drive bays
- 4U 19" Rackmount Standard Chassis
- Supports ATX Motherboard
- Supports (4) 5.25" external, (1) 3.5" external, and (2) 3.5" internal Drive Bays
- (2) 2.0 USB ports on Front Panel
- (1) 12cm and (1) 8cm ball-bearing fan with space for one additional fan
- Fan monitor circuit board
- Dual Lockable Front Doors and Replaceable Air Filters
| Board Support | ATX Motherboard |
| Expansion Slots |
(7) slots for full size add-on cards |
| Drive Bays | (4) 5.25", (1) 3.5" for external, (2) 3.5" for internal |
| Front Panel | (2) USB2.0 ports on front panel On/Off Switch and Reset Switch, Power ON/OFF LED, (1) HDD LED, Fan & Alarm LED |
| Power Supply |
Supports PS/2 ATX power supply |
| Cooling | 12 cm front fan with air filter, (1) 8 cm fan on the rear and environmental monitoring board. (1) extra space for additional 8cm fan |
| Dimensions |
427 (W) x 480 (D) x 176.8 (H) mm; 16.8 (W) x 18.9 (D) x 7 (H) inches |
| Gross Weight |
12Kgs/15.6Kgs |
