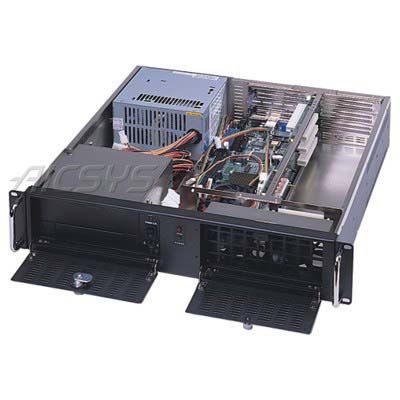

RCK-203B 17" Deep 2U Chassis
- 2U 17” Rackmount Chassis
- Supports Full Size SBC and Full Length PCI Expansion
- PICMG Backplane with optional 2 or 4 PCI slots for Expansion
- 2 x 8cm Replaceable High-speed Ball Bearing Fans for Better Ventilation
- Heavy Duty Steel with Ni Plating
| Construction | Heavy duty steel with Ni plating |
| SBC Form Factor | Full or Half Size SBC's |
| Drive Bays | (1) 5.25" (1) 3.5" external drives (1) 3.5" internal drives |
| Cooling Fans | (2) 8 cm ball bearing fans and replaceable air filter |
| Expansion | PICMG butterfly backplane with optional 2 or 4 PCI slots |
| Indicators | Power ON/OFF LED HDD Active LED |
| Operating Temperature | 0~55 ºC |
| Color | Black/Beige |
| Weight (Net/Gross) | 10.2kg |
| Dimensions | 434 (W) x 450 (D) x 88 (H) mm 17 (W) x 17.7 (D) x 3.5 (H) inches |
| Power Supply | 300W/400W PS/2 ATX power supply (PFC optional) |
| RCK-203B-0602P-30 | 2U chassis RCK-203B with (2 PCI, 2 ISA, 2 PICMG) butterfly backplane and 300W ATX PS/2 power supply |
| RCK-203B-0604P-300W | 2U chassis RCK-203B with (4 PCI, 2PICMG) butterfly backplane and 300W ATX PS/2 power supply |
| RCK-203B-0602P-400W | 2U chassis RCK-203B with (2 PCI, 2 ISA, 2 PICMG) butterfly backplane and 400W ATX PS/2 power supply |
| RCK-203B-0604P-400W | 2 U chassis RCK-203B with (4 PCI, 2PICMG) butterfly backplane and 400W ATX PS/2 power supply |
| SR-120 | Slide Rail |
