Design exclusive to ICP America, Inc.
Stylish front panel with keylock
1 x 3.5" HDD, 1 x 5.25" or 1 x Slim Optical and 1 x 3.5”
Fits Micro-ATX or Mini-ITX Motherboard
Only 380mm deep, for DVR applications

Construction	Heavy duty metal with plastic front panel
Motherboard Form Factor	Micro-ATX, Mini-ITX
Drive Bays	1 x 5.25” or 1 x Slim Optical and 1 x 3.5” 1 x 3.5" HDD (internal)
Cooling Fans	1 x 8 cm
Expansion Slots	4 Slots for Low profile cards
Indicators	Power, HDD
Buttons	Power switch, reset
Operating Temperature	0~50°
Operation Humidity	10% ~ 90%
Color	B: Black
Vibration	5 to 17Hz, 0.1” double amplitude displacement 17 to 640Hz, 1.5G acceleration peak to peak
Shock	10G acceleration peak to peak
Dimensions (DxWxH)	380mm x 431mm x 88mm

Motherboards

Model No.

SBC Type

PCI

PCIe

AGP x4

PSU Connector

x1

x4

x16

IMB-Q354

Micro ATX

2

0

1

0

ATX 24pin

IMB-3010M

Micro ATX

1

0

1

2

0

ATX 24pin

IMB-9454G

Micro ATX

2

1

0

1

0

ATX 24pin

IMB-9452

Micro ATX

2

1

0

1

0

ATX 24pin

IMB-9154

Micro ATX

1

2

0

1

0

ATX 24pin

IMB-8550

Micro ATX

3

0

1

ATX

KINO-9654G4

Mini ITX

0

1

0

ATX 24pin

KINO-9652

Mini ITX

1

0

ATX 24pin

KINO-9454

Mini ITX

0

1

0

ATX 24pin

KINO-9453

Mini ITX

1

0

ATX

KINO-9452

Mini ITX

1

0

ATX

KINO-9451

Mini ITX

0

1

0

ATX

KINO-9152

Mini ITX

0

1

0

ATX

KINO-690AM2

Mini ITX

1

0

ATX

KINO-690S1

Mini ITX

1

0

ATX

KINO-761AM2

Mini ITX

1

0

ATX

KINO-6612LVDS

Mini ITX

1

0

ATX

KINO-LX

Mini ITX

1

0

ATX

A200

Mini ITX

0

ATX

Power Supplies
Model No.	Type	Input	Watt
ACE-832A(P)-RS	ATX	AC	300W
600115	ATX 20+4pin	AC	350W
ACE-841AP-S-RS	ATX 20+4pin	AC	400W
ACE-850AP-24-RS	ATX 20+4pin	AC	500W
ACE-4860AP-RS	ATX 20+4pin	AC	600W

Ordering Info

RACK-2000GB-ICP-R2

2U Server chassis for Micro ATX / Mini ITX motherboards, 4-slots for half height cards, with 300W ATX power supply, Black, RoHS

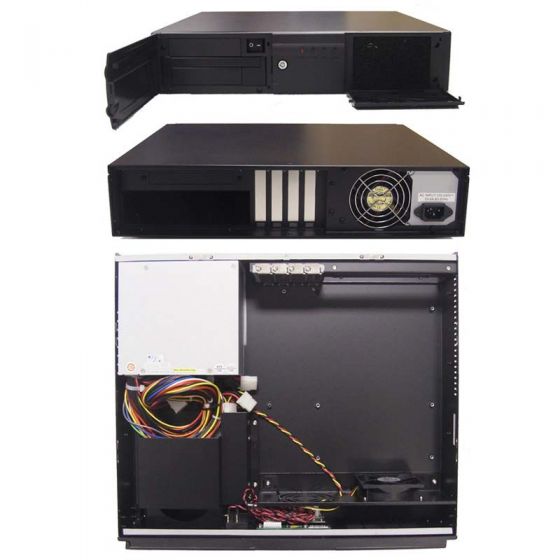

RACK-2000GB-ICP (2U Motherboard Chassis)

RACK-2000GB-ICP (2U Motherboard Chassis)
