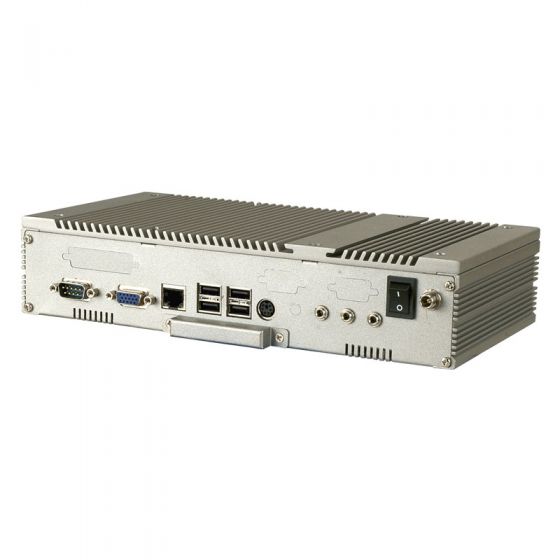

EBC-2100
Embedded chassis for NANO-8522/GX/LX, compatible with 2.5" SATA hard drive, 60W power adapter with ERP and PSE certificates, RoHS
- Embedded chassis for NANO-8522/GX/LX
- Compatible with 2.5" SATA hard drive
- 60W power adapter with ERP and PSE certificates
| Platform | Case Only |
| Color | Cool Gray |
| Dimensions (WxDxH) | 262 x 134 x 56 mm |
| System Fan | 1 x 4cm (Optional item) |
| Chassis Construction | Aluminum alloy with heavy duty metal |
| Motherboard Model | NANO-LX |
| M/B Size | EPIC (165 x 115mm) |
| Hard Drive | 1 x 2.5" SATA HDD space |
| CompactFlash® | 1 |
| SD Card | N/A |
| PS2 (KB/MS) | N/A |
| USB 3.0 | N/A |
| USB 2.0 | 4 |
| Ethernet | 1 |
| RS-232 | N/A |
| RS-232/422/485 | 1 + 2 (optional) |
| LPT | 1 (optional) |
| Display | 1 x VGA |
| Resolution | N/A |
| Audio | 3 x Audio jack (optional) |
| Wireless | N/A |
| Video Capturing | N/A |
| Mini-PCIe/PCI | refer to SBC |
| Expansions | 1 x PCI-104 |
| Power Input | 12V DC in |
| Power Supply | 12VDC in, AT mode only, w/60W power adapter |
| Mounting | Desktop, wall mount |
| Operating Temperature | 0°C ~ 50°C |
| Operating Shock | Half-sine wave 3G, 11ms 3 shocks per axis |
| Operating Vibration | MIL-STD-810F 514.5C-1 |
| Weight (Net/Gross) | 1kg/3kg |
| EBC-2100-R41 | Embedded chassis for NANO-8522/GX/LX, compatible with 2.5" SATA hard drive, 60W power adapter with ERP and PSE certificates, sliver, RoHS |
| Accessories | |
| 32000-114001-RS | 2.5” SATA HDD cable with 2-pin WAFER 2.0mm power cable, for NANO-945GSE-N270 in EBC-2101, 20cm |
| 19100-000027-RS | 4010 system fan, +12V ball bearing |
| 32200-000037-RS | 44-pin IDE cable for 2.5" hard drive |
