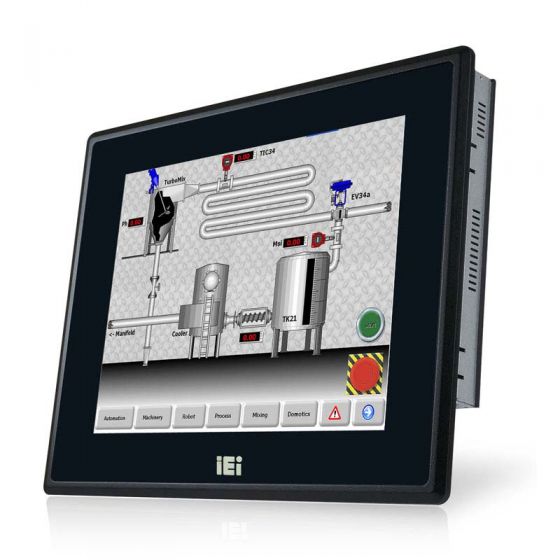

PPC-F12B-BT
● Support IEI iRIS-2400 remote intelligent solution
● Intel® Celeron® J1900 quad-core SoC
● Robust IP65 aluminum front bezel
● Aesthetic ultra-thin bezel for seamless panel mount installation
● Projected capacitive multi-touch and resistive single touch options
● Dual full-size PCIe Mini card expansion
● 9V~36V DC wide range DC input
| LCD | 12” (4:3) |
| Max Resolution | 1024 (W) x 768 (H) |
| Brightness (cd/m²) | 600 |
| Contrast Ratio | 700 : 1 |
| LCD Color | 16.2M |
| Pixel Pitch (mm) (HxV) | 0.24 x 0.24 |
| Viewing Angle (V/H) | 160° / 140° |
| Backlight MTBF (hrs) | 50000 |
| Touch Screen | 5-wire resistive single-touch type flat touchscreen / 2-point projected capacitive type touchscreen |
| CPU | Intel® Celeron® processor J1900 (2M cache, up to 2.42 GHz) |
| RAM | 1 x 204-pin DDR3L SO-DIMM slot (max. 8GB), pre-installed with 2GB |
| I/O Ports and Switches | 2 x RJ-45 LAN port 2 x USB 3.0 2 x USB 2.0 1 x HDMI 2 x RS-232 1 x RS-232/422/485 1 x VGA 1 x 9 V~36 V DC jack (4-pin) 1 x 9 V~36 V DCTerminal block 1 x Line-out (PPC-F15B and PPC-17B only) 1 x Power switch |
| CD-ROM Drive Bay | 1 x 2.5” HDD/SSD drive bay |
| Expansion Slot | 1 x Full-size PCIe Mini card slot (with PCIe and USB signal) 1 x Full-size PCIe Mini card slot colay mSATA (SATA2 only) (with PCIe and USB signal) |
| Wireless | 802.11 a/b/g/n/ac + Bluetooth v4.0 wireless kit (SMA antenna) (optional) |
| Construction Material | Aluminum front panel and sheet metal rear cover |
| Mounting | Panel Mount/ Rack Mount/ 100 x 100 VESA Mount |
| Dimensions (WxHxD) (mm) | 262.2 x 322.2 x 47.2 |
| Cut Out Dimensions (WxH) (mm) | 244.8 x 304.8 |
| Net / Gross Weight | 3.2kg |
| Operating Temperature | -10°C~50°C (14°F~122°F) |
| Storage Temperature | -20°C~60°C (-4°F~140°F) |
| Operating Humidity | 10% to 95% (non-condensing) |
| IP Rating | IP 65 compliant front panel |
| Safety & EMC | CE & FCC Class A certified |
| Power Consumption | 40W |
| PPC-F12B-BTi-J1/2G/R-R10 | 12” 600 cd/m² XGA panel PC with Intel® Celeron® processor J1900, TDP 10W, one 2 GB RAM, support iRIS-2400, black color, 9-36V DC input, resistive touch window, R10 |
| PPC-F12B-BTi-J1/2G/PC-R10 | 12” 600 cd/m² XGA panel PC with Intel® Celeron® processor J1900, TDP 10W, one 2 GB RAM, support iRIS-2400, black color, 9-36V DC input, projected capacitive touch window, R10 |
