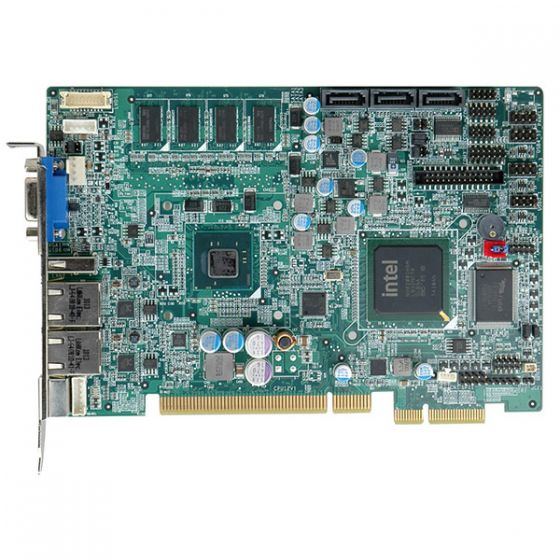

PICOe-PV-N4551(PCIe Half Size SBC)

Half-size PCIe CPU card with Intel® Atom™ dual-core D525 1.80GHz/1MB L2, 1GB memory on board, VGA/LVDS, dual PCIe GbE, USB 2.0, SATA II and audio, Optional TPM, RoHS
Quote a Custom Order
Email
  • PCIe CPU card supports four PCIe x1 or one PCIe x4 and 4 x PCI expansions
  • Intel® Atom™ Single Core N455 Processor 1.66GHz with 512K L2 Cache
  • 1GB of DDR3 800MHz SDRAM on board and one expansion SO-DIMM slot support
  • Support VGA and 18-bit single channel LVDS with dual display support
  • I/O include three RS-232, one RS-232/422/485, seven USB 2.0 and three SATA II
  • IEI One Key Recovery solution allows you to create rapid OS backup and recovery
CPU Intel® Atom™ Single Core N455 Processor 1.66GHz with 512K L2 Cache
System Chipset Intel® ATOM N455 + ICH8M
BIOS UEFI BIOS
System Memory One 204-pin 800MHz DDR3 SDRAM SO-DIMM supported (2GB for N455) (compatible w/128MB*8 SDRAM) On-board 1 GB DDR3 800 MHz memory
Ethernet Dual PCIe GbE by Realtek RT8111E, LAN1 with ASF2.0 support
I/O Interface 3 x RS-232
1 x RS-232/422/485 with Auto Flow control
1 x LPT
1 x PS/2 for KB/MS
1 x CF Type II
1 x 6-pin wafer header for KB/MS
3 x SATA II
7 x USB 2.0 (6 by header, 1 on rear side)
Digital I/O 8-bit digital I/O
4-bit input / 4-bit output
Super I/O Fintek F81865
Infrared 1 x 5-pin header
TPM INFINEON SLB9635TT1.2(Optional)
SMBus 1 x 4-pin wafer connector
Audio Support 7.1 channel HD audio by IEI AC-KIT888HD-R10 kit
Display Interfaces Analog CRT 1400x1050 for N455
Support CRT hot plug
Single Channel 18-bit LVDS support resolution up to XGA (1024x768) & WXGA(1366x768)
Expansion 4 x PCI
4 x PCIe x1 or 1 x PCIe x4
Watchdog Timer Software programmable support 1~255 sec. system reset
Power Supply 5V/12V, AT/ATX support
Fan 1 x 4-pin fan connector
Power Consumption 12V@0.32A, 5V@3.13A
(Intel® Atom™ Single Core N455 1.66GHz with 1GB DDR3 800MHz Memory on board)
Graphic GMA 3150
Gen3.5 DX9, 200MHz for N455
Temperature Operating:
-20°C ~70°C with free air
-20°C ~75°C with force air for N455 processor
Humidity Operating: 5% ~95%, non-condensing
Dimensions 185 mm x 122 mm
Weight GW: 1000g / NW: 250g
PICOe-PV-N4551-R11 Half-size PCIe CPU card with Intel® Atom™ single-core N455 1.66GHz/512K L2, 1GB memory on board, VGA/LVDS, dual PCIe GbE, USB 2.0, SATA II and audio, RoHS
ACCESSORIES
AC-KIT888HD-R10 7.1 channel HD Audio kit with Realtek ALC888 codec and dual audio streams support
19800-000075-RS KB/MS cable with bracket
32102-000100-200-RS SATA Power Cable
32102-000100-300-RS SATA Power Cable
19FFD124010HB2A7-000001-RS CPU Fan
19800-000075-RS KB/MS cable with bracket
32200-015100-RS LPT cable
34000-000510-RS 30MM Higher Heatsink
