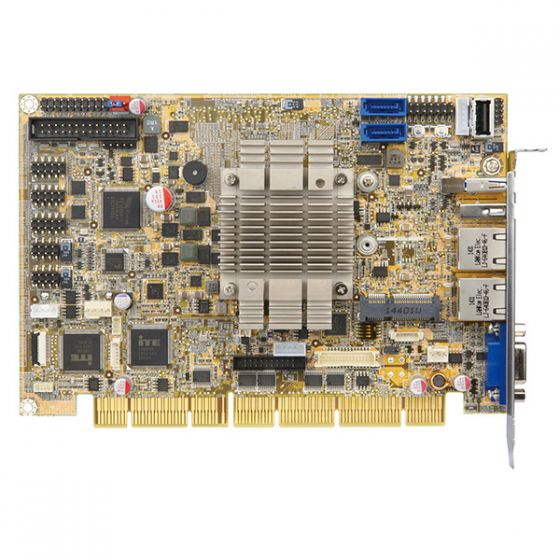

PCISA-BT
Half Size PCI Express Single Board Computer, Intel® Atom™ N270 1.6GHz Processor, Intel® 945GSE Chipset, 2GB DDR2 Memory support, VGA/ LVDS/ HDTV-Out / SDVO, Dual PCI GbE, SATA, CF Type II, RS-232, LPT, HD Audio, and USB 2.0
● Half-size PCISA CPU card supports Intel® 22nm Atom™ or Celeron® on-board SoC
● Supports dual LAN by Intel® I211-AT PCIe controllers
● Supports 1.35 V 1333/1066 MHz DDR3L SDRAM up to 8GB
● Supports dual independent display with one analog CRT, iDP and one 24-bit dualchannel LVDS (optional)
● COM, USB 3.0, SATA 3Gb/s, PCIe Mini, mSATA and HD Audio support
● IEI One Key Recovery solution allows you to create rapid OS backup and recovery
| CPU | Intel® Atom™ E3845 on-board SoC (1.91GHz, quad-core, 2MB cache, TDP=10W) Intel® Atom™ E3827 on-board SoC (1.75GHz, dual-core, 1MB cache, TDP=8W) Intel® Atom™ E3826 on-board SoC (1.46GHz, dual-core, 1MB cache, TDP=7W) Intel® Atom™ E3825 on-board SoC (1.33GHz, dual-core, 1MB cache, TDP=6W) Intel® Atom™ E3815 on-board SoC (1.46GHz, single-core, 512KB cache, TDP=5W) |
| System Memory | One 204-pin 1066/1333MHz single-channel DDR3L SDRAM unbuffered DIMM (system max. 8GB) |
| Ethernet | LAN1: Intel® I211-AT PCIe controller LAN2: Intel® I211-AT PCIe controller |
| I/O Interface | 1 x IR 1 x KB/MS (1x6 pin) 1 x LPT (2x13 pin) 4 x USB 2.0 (2x4 pin, P=2.54) 1 x RS-422/485 (1x4 pin, P=2.0) 1 x USB 2.0 (180 degree type A) 2 x RS-232 (2x5 pin, P=2.54) 2 x SATA 3Gb/s 1 x mSATA (SATA 3Gb/s, shares with SATA1) |
| Digital I/O | 1 x 8-bit digital I/O (2x5 pin) |
| TPM | 1 x TPM (2x10 pin) |
| SMBus | 1 x SMBus (1x4 pin) |
| Audio | Support 7.1 channel HD audio by IEI AC-KIT-892HD kit 1 x Analog audio (2x5 pin) |
| Expansion | 1 x microSD socket 1 x PCIe Mini slot PCIe-PCI bridge: ITE8892E LPC-ISA bridge: F85226FG PCI and ISA signal via golden finger |
| Watchdog Timer | Software programmable supports 1~255 sec. system reset |
| Power Supply | 5V/12V, AT/ATX support |
| Power Consumption | 5V@1.55A,12V@0.74A (Intel® Atom™ E3845 1.91GHz CPU with one 8GB 1333MHz memory) |
| Graphic | Intel® HD Graphics Gen 7 Engines with 4 execution units, supporting DX11.1, OpenGL 4.2 and OpenCL1.2 |
| Operating Temperature | -20°C ~ 60°C |
| Storage Temperature | -30°C ~ 70°C |
| Dimensions | 185 mm x 128 mm |
| Weight | GW: 1000g/NW: 250g |
| I2C | 1 x I²C (1x4 pin) |
| Fan Connector | 1 x Smart fan connector (1x4 pin) 1 x System fan connector (1x3 pin) |
| PCISA-BT-E38451-R10 | Half-size PCISA CPU card supports Intel® Atom™ E3845 (10W) on-board SoC with VGA, iDP, Dual Intel® PCIe GbE, USB 3.0, PCIe Mini, SATA, mSATA, COM, Audio and RoHS |
| PCISA-BT-E38251-R10 | Half-size PCISA CPU card supports Intel® Atom™ E3825 (6W) on-board SoC with VGA, iDP, Dual Intel® PCIe GbE, USB 3.0, PCIe Mini, SATA, mSATA, COM, Audio and RoHS |
| Accessories | |
| 32205-003800-300-RS | RS-422/485 cable, 200mm, P=2.0 |
| 19800-000075-RS | PS/2 KB/MS Y-cable with bracket, 220mm |
| 32102-000100-200-RS | SATA power cable, MOLEX 5264-4P to SATA15P |
| 32200-015100-RS | LPT flat cable, 280mm |
| 19800-000051-RS | Dual RS-232 cable, 230mm, P=2.54 |
| AC-KIT-892HD-R10 | Realtek ALC892 7.1 channel HD audio peripheral board |
| DP-DVI-R10 | DisplayPort to DVI-D converter board (for IEI iDP connector) |
| DP-HDMI-R10 | DisplayPort to HDMI converter board (for IEI iDP connector) |
| DP-LVDS-R10 | DisplayPort to LVDS converter board (for IEI iDP connector) |
| DP-VGA-R10 | DisplayPort to VGA converter board (for IEI iDP connector) |
| DP-DP-R10 | DisplayPort to DisplayPort converter board (for IEI iDP connector) |
| TPM-IN01-R11 | 20-pin Infineon TPM module, software management tool, firmware V3.17 |
