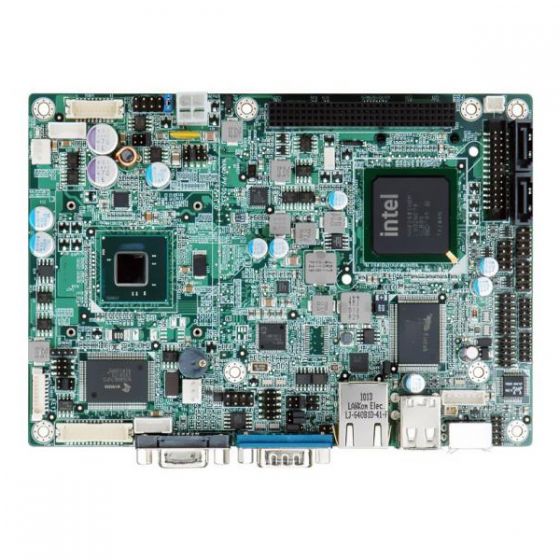

NANO-PV-D5252(EPIC SBC)
EPIC with Intel® Atom™ N455 1.66GHz, DDR3, VGA/ LVDS, Dual GbE, USB 2.0, CF II, Audio and SATA 3Gb/s, RoHS
1. EPIC SBC with Intel® Atom™ D525 proccessor and DDR3 solution
2. 12V only single voltage design for AT/ATX mode
3. Support dual LVDS
4. Support PCI-104 and PCIe Mini card slot
5. Support five COM, eight USB, two SATA 3Gb/s and one CF Type II socket
6. IEI One Key Recovery solution allows you to create rapid OS backup and recovery
| CPU | Intel® Atom™ D525 dual-core processor 1.8GHz/1MB L2 cache |
| System Chipset | Intel® ICH8M |
| BIOS | UEFI BIOS |
| System Memory | One 204-pin 800MHz DDR3 SDRAM SO-DIMM supported (system max. 4GB for D525) |
| Ethernet | Realtek RTL8111E PCIe GbE controller with ASF 2.0 support |
| I/O Interface | 1 x CF Type II 1 x LPT 1 x RS-232/422/485 (COM3) with auto flow control 2 x KB/MS 2 x SATA 3Gb/s 4 x RS-232 8 x USB 2.0 |
| Digital I/O | 8-bit digital I/O, 4-bit input/4-bit ouput |
| Super I/O | Fintek F81865 |
| TPM | On-board Infineon SLB9635TT1.2 (Optional) |
| Audio | Realtek ALC662 HD codec |
| Display Interfaces | Analog CRT with up to 2048x1536 resolution, support CRT hotplug 18-bit single-channel LVDS, resolution support up to 1366x768 18/24-bit single/dual-channel LVDS by Novatek NT68660BUFG resolution support up to 800x600, 1024x768, 1280x1024, 1366 x768, 1920x1080 |
| Expansion | 1 x PCI-104 slot 1 x PCIe Mini card slot |
| Watchdog Timer | Software programmable supports 1~255 sec. system reset by Super I/O |
| Power Supply | 12V only, AT/ATX support |
| Power Consumption | 2.16A@12V (Intel® Atom™ D525 with 2 GB 1066 MHz DDR3) |
| Graphic | GMA 3150 Graphic core speed 400MHz for D525 |
| Operating Temperature | -10°C ~ 60°C |
| Storage Temperature | -20°C ~ 70°C |
| Humidity | 5% ~ 95%, non-condensing |
| Weight | GW: 650g / NW: 340g |
| Fan Connector | 1 x 3-pin CPU fan connector 1 x 3-pin system fan connector |
| NANO-PV-D5252-R11 | EPIC SBC with Intel® Atom™ D525 1.8GHz/1MB L2, VGA/Dual LVDS, PCIe GbE, CF Type II, SATA 3Gb/s |
| Accessories | |
| 19FFD124010HB2A7-000001-RS | CPU fan (40mmx40mmx10mm) |
| 32000-062800-RS | SATA (7-pin to 7-pin) cable, 500mm |
| 32200-015100-RS | LPT cable, 280mm, P=2.0 |
| 32200-026500-RS | RS-232/422/485 cable, 290mm, P=2.0 |
