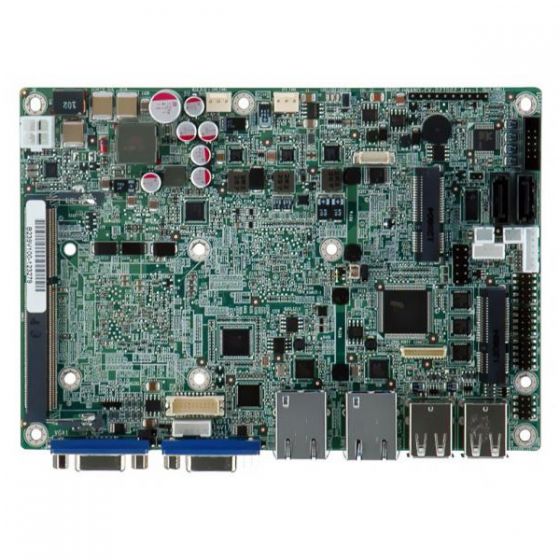

NANO-CV-N26002 (EPIC SBC)
EPIC SBC supports Socket G2 for Intel® 2nd generation Core™ i7/i5/i3 and Celeron® CPU, VGA/HDMI, Dual PCIe GbE, USB 2.0, PCI-104, SATA 6Gb/s and Audio
- Intel® dual core Atom™ N2600 1.6GHz processor
- Dual display support by dual VGA and 18/24-bit single channel LVDS
- 1 x 800MHz DDR3 SO-DIMM supporting up to 2GB
- Thermal design for easy assembly by enclosure heatsink
- Wide power voltage range by 9V ~ 28V support
- IEI One Key Recovery solution allows you to create rapid OS backup and recovery
| CPU | Intel® dual core Atom™ N2600 1.6GHz processor |
| System Chipset | Intel® NM10 |
| BIOS | UEFI BIOS |
| System Memory | 1 x 800MHz DDR3 SO-DIMM supporting up to 2GB |
| Ethernet | Dual PCIe LAN controller by Realtek RTL8111E with ASF 2.0 support |
| I/O Interface | 3 x RS-232 1 x RS-422/485 1 x 6-pin wafer for PS/2 KB/MS 6 x USB 2.0 (4 on rear, 2 by pin header) 2 x SATA 3Gb/s with SATA 5V power connector (SATA1 and mSATA shares SATA signal) |
| Digital I/O | 8-bit programmable I/O |
| Super I/O | Fintek F81866 |
| Audio | Realtek ALC662 HD codec (Line-in, Line-out, Mic) |
| Display Interfaces | 1st VGA integrated in the CPU (up to 1920 x 1200 @60Hz) 2nd VGA driver via the NXP PTN3392 (up to 1920 x 1200 @60Hz) LVDS1 integrated in the CPU Single-channel 18-bit LVDS by N2600, resolution support up to 1366x768 @60Hz |
| Expansion | 1 x full-size PCIe Mini card slot with mSATA support (SATA1 and mSATA shares SATA signal) 1 x half-size PCIe Mini card slot |
| Watchdog Timer | Software programmable supports 1~255 sec. system reset by Super I/O |
| Power Supply | 9 ~ 28V, AT/ATX support |
| Fan | 1 x 4-pin CPU fan connector 1 x 3-pin system fan connector |
| Power Consumption | 12V@1.23A (Intel® dual core N2600 CPU with 1333MHz 4GB DDR3 memory) |
| Graphic | GMA 3600 at 400MHz graphics core speed (for N2600) |
| Temperature | -20°C ~ 70°C with free air, -20°C ~ 75°C with force air for N2600 processor |
| Humidity | 5% ~ 95%, non-condensing |
| Weight | GW: 850g/NW: 350g |
| Dimensions | 115 mm x 165 mm |
| NANO-CV-N26002-R10 | EPIC SBC with Intel® Atom™ N2600 1.6GHz, DDR3, dual VGA/LVDS, dual GbE, USB 2.0, dual PCIe Mini, SATA 3Gb/s, mSATA and Audio |
| ACCESSORIES | |
| 32000-070301-RS | Dual-port USB cable |
| 32205-002700-100-RS | RS-232 cable |
| 32205-003800-100-RS | RS-422/485 cable, 200mm |
| 32000-023800-RS | PS/2 KB/MS Y cable |
