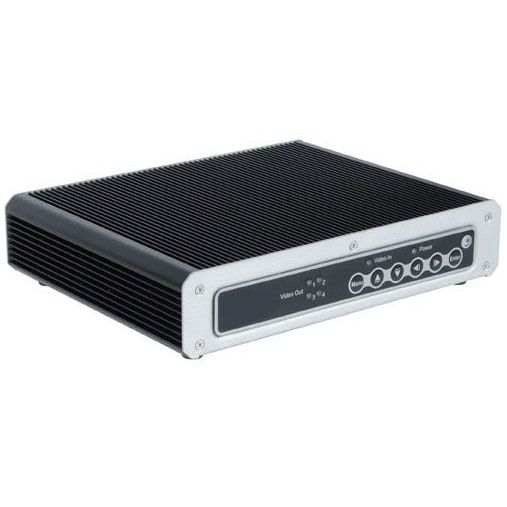

iVW-UD322 Video Wall Controller
- iNDS unique GeniMask™ bezel masking technology
- Easy-to-install, flexible combination, costeffective solution
- High-resolution display content input and output
- Non-scaling, pixel-to-pixel mapping advantage
- Support various display modes
- High frame
| Model | iVW-UD322 | |||
| Dimensions (mm) | 230 x 179 x 47 | |||
| Cooling | Fanless | |||
| Front Panel | LED Indicator | 6 x LED (1 x input, 4 x output, 1 x power) | ||
| Keypad | 6 keys | |||
| IR Receiver | Yes | |||
| Rear Panel | Input | 1 x DVI-D dual-link input | ||
| Output | 4 x DVI-D single-link output | |||
| Power Switch | 1 x power in with lock | |||
| RS-232 | 1 x RS-232 | |||
| Resolution /Display Mode |
Mode | Input | Output | Output Vertical Frequency (Hz) |
| Full mode (2 x 2) | 2048x1536 | 4x 1024x768 | 60 | |
| 2560x2048 | 4x 1280x1024 | 60 | ||
| 2560x1440 | 4x1280x720 | 60 | ||
| 2560x1600 | 4x 1280x800 | 60 | ||
| 2720x1536 | 4x 1360x768 | 60 | ||
| 3840x2880 | 4x 1920x1440 | 60 | ||
| 3840x2160 | 4x 1920x1080 | 60 | ||
| 3840x2400 | 4x 1920x1200 | 60 | ||
| 2560x1920 | 4x 1280x960 | 60 | ||
| 1280x960 | 4x 640x480 | 60 | ||
| 3392x1920 | 4x 1696x960 | 60 | ||
| 1696x960 | 4x 848x480 | 60 | ||
| 2732x1536 | 4x 1366x768 | 60 | ||
| Vertical replication mode (2 x 1) | 2560x1024 | 2x 1280x1024 | 60 | |
| 3840x1080 | 2x 1920x1080 | 60 | ||
| 3840x1200 | 2x 1920x1200 | 60 | ||
| Clone mode (1 x 1) | 1024x768 | 1x 1024x768 | 60 | |
| Full mode (4 x 1) | 3392x480 | 4x 848x480 | 60 | |
| 3200x600 | 4x 800x600 | 60 | ||
| 3840x600 | 4x 960x600 | 60 | ||
| 4094x768 | 4x 1024x768 | 60 | ||
| Full mode (3 x 1) | 3072x768 | 3x 1024x768 | 60 | |
| 3840x800 | 3x 1280x800 | 60 | ||
| 3840x1024 | 3x 1280x1024 | 60 | ||
| 4080x768 | 3x 1360x768 | 60 | ||
| Full mode (1 x 4) | 1024x3072 | 4x 1024x768 | 60 | |
| 1280x3200 | 4x 1280x800 | 60 | ||
| 1280x4095 | 4x 1280x1024 | 60 | ||
| 1360x3072 | 4x 1360x768 | 60 | ||
| 1366x3072 | 4x 1366x768 | 60 | ||
| Full mode (1 x 3) | 1024x2304 | 3x 1024x768 | 60 | |
| 1280x2400 | 3x 1280x800 | 60 | ||
| 1280x3072 | 3x 1280x1024 | 60 | ||
| 1360x2304 | 3x 1360x768 | 60 | ||
| 1366x2304 | 4x 1366x768 | 60 | ||
| Power Consumption | 18W | |||
| Power Supply | Power Connector | DC power jack | ||
| Input | 90VAC to 264VAC/47Hz to 63Hz | |||
| Output | 12V DC | |||
| OSD Function | • Power On/Off • Output resolution selection • GeniMask bezel masking control |
|||
| Temperature | 0℃ ~ 40℃ | |||
| Certificate | CE, FCC | |||
| iVW-UD322 | Ultra HD Video Wall Controller, One box solution for 2x2 ultra high resolution video wall |
