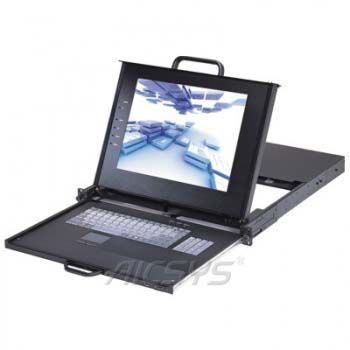

CYCLOPS-B Series
- 1U 8/16-port KVM unit with 15"/17"/19" LCD Drawer
- Industrial grade 106-key keyboard and touchpad
- Optional Cherry keyboard and trackball
- Expandable to control up to 128 computers
- On Screen Display (OSD) enable easy adjustment
- Password function for extra security
- Separate tracks for LCD panel and keyboard to allow for the most comfortable visual distance
| LCD Display Size | 15"/17"/19" |
| Resolution | 1024x768, 1280x1024(17"/19") |
| Connector | 15-pin D type female connectors for 8 and 16 platform connection |
| KVM Switch | Port selection through Hot Keys or On-Screen Display. Cascading up to 128 systems, Password function for extra security |
| Keyboard and Mouse | PS/2 106 keys keyboard with touch pad or 84-key Cherry keyboard with trackball |
| Power Supply | Industrial level Auto-switching power supply for 85V~264V AC Input |
| On-Screen Control | Auto adjustment, brightness, contrast, phase, H-V position, frequency, size, and display mode |
| Drawer Design | Full extension high load rating slide rail, total drawer travel distance: 385mm. Two separate tracks for panel and keyboard enables independent extraction of either panel or keyboard alone. |
| Dimensions |
17.5 x 22.4 x 1.7 (15"/17" Display Models), 17.5 x 24.8 x 1.7 (19" Display Model) |
| Gross Weight | 16.5kg/36.3 lbs |
| CYCLOPS-B158F | 15" LCD/8-Port KVM/VGA Input/ Combo-free Industrial Keyboard and Touchpad |
| CYCLOPS-B158CF | 15" LCD/8-Port KVM/VGA Input/Combo-free Cherry Keyboard and Trackball |
| CYCLOPS-B158D | 15" LCD/8-Port KVM/DVI Input/USB Keyboard and Touchpad |
| CYCLOPS-B1516F | 15" LCD/16-Port KVM/DVI Input/Combo-free Industrial Keyboard and Touchpad |
| CYCLOPS-B1516CF | 15" LCD/16-Port KVM/VGA Input/Combo-free Cherry Keyboard and Trackball |
| CYCLOPS-B178F | 17" LCD/8-Port KVM/VGA Input/Combo-free Industrial Keyboard and Touchpad |
| CYCLOPS-B178CF | 17" LCD/8-Port KVM/VGA Input/Combo-free Cherry Keyboard and Trackball |
| CYCLOPS-B178S | 17" LCD/8-Port KVM/VGA Input/USB Keyboard and Touchpad |
| CYCLOPS-B1716F | 17" LCD/16-Port KVM/VGA Input/Combo-free Industrial Keyboard and Touchpad |
| CYCLOPS-B198F | 19" LCD/8-Port KVM/VGA Input/Combo-free Industrial Keyboard and Touchpad |
| CYCLOPS-B1916F | 19" LCD/16-Port KVM/VGA Input/Combo-free Industrial Keyboard and Touchpad |
