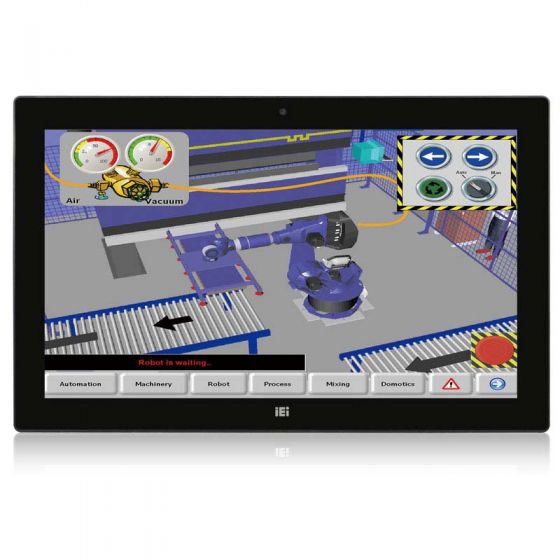

AFL3-W15B-H81
● W15” light industrial interactive panel PC
● 9 V ~ 30 V wide range DC power input
● Selectable AT/ATX power mode
● Built-in speakers
● One mSATA slot
● IP64 compliant front panel
● IEI One Key Recovery solution alllows you to create rapid OS backup and recovery (suggested with over 4GB storage capacity)
| LCD Size | 15.6” |
| Max Resolution | 1366 x 768 (16:9) |
| Brightness (cd/㎡) | 300 |
| Contrast Ratio | 700:1 |
| LCD Color | 16.7M |
| Pixel Pitch (mm) | 0.240 (H) x 0.240 (V) |
| Viewing Angle (H-V) | 160º / 160º |
| Backlight MTBF | 50000 (LED backlight) |
| CPU | Intel® Core™ i7/i5/i3, Pentium®, Celeron® processor (TDP 35W) |
| Chipset | Intel® H81 |
| RAM | Two 204-pin 1333MHz single-channel DDR3L SDRAM, 4GB pre-installed (system max. 16GB) |
| I/O Ports and Switches | 1 x RS-232 COM port (DB-9 connector) 1 x RS-232/422/485 COM port (DB-9 connector) (RI/5V/12V) 2 x GbE LAN 4 x USB 2.0 2 x USB 3.0 1 x HDMI output 1 x Power switch 1 x Reset button 1 x AT/ATX switch 1 x Audio port (line-out) 1 x 9-30V lockable power jack |
| Audio | AMP 3W + 3W (internal speakers) |
| Camera | 2-megapixel with low light function, digital microphone |
| OSD Function | Software OSD |
| Ethernet | 2 x PCIe GbE by RTL8111E controller |
| Wireless | IEEE 802.11a/b/g/n/ac |
| Bluetooth | Bluetooth v4.0 |
| Touch Screen | 5-wire resistive type with RS-232 interface / projected capacitive type with USB interface |
| Mounting | Panel, Wall, Rack, Stand and Arm VESA 75mm x 75mm / 100mm x 100mm |
| Dimension (WxHxD) (mm) | 396 x 250 x 59 |
| Operating Temperature (°C) (Ambient with air flow) | -20°C~50°C |
| Storage Temperature (℃) | -20°C~60°C |
| Humidity | 10% to 95% (non-condensing) |
| IP Level(front panel) | IP 64 compliant front panel |
| Power Requirement | 9 V ~ 30 V |
| Power Consumption | 12V@6.33A (Intel® Intel® Pentium® G3320TE CPU with 4GB 1333 MHz DDR3L memory) |
| Touch Controller | PenMount DMC9000/ EETI EXC7200 |
| Audio Codec | ALC892 |
| Safety & EMC | CE / FCC |
| AFL3-W15B-H81-P/R/4G-R10 | Wide 15.6” 300 cd/m² 1366 x 768 panel PC with Intel® H81 chipset, Intel® Pentium® G3320TE dual-core processor (2.3 GHz), TDP 35W, two 2GB DDR3 RAM, 802.11a/b/g/n/ac, resistive touch screen, 2-megapixel camera, microphone, R10 |
| AFL3-W15B-H81-i3/R/4G-R10 | Wide 15.6” 300 cd/m² 1366 x 768 panel PC with Intel® H81 chipset, Intel® Core™ i3-4330TE dual-core processor (2.4 GHz), TDP 35W, two 2GB DDR3 RAM, 802.11a/b/g/n/ac, resistive touch screen, 2-megapixel camera, microphone, R10 |
| AFL3-W15B-H81-i5/R/4G-R10 | Wide 15.6” 300 cd/m² 1366 x 768 panel PC with Intel® H81 chipset, Intel® Core™ i5-4570TE dual-core processor (2.7 GHz), TDP 35W, two 2GB DDR3 RAM, 802.11a/b/g/n/ac, resistive touch screen, 2-megapixel camera, microphone, R10 |
| AFL3-W15B-H81-P/PC/4G-R10 | Wide 15.6” 300 cd/m² 1366 x 768 panel PC with Intel® H81 chipset, Intel® Pentium® G3320TE dual-core processor (2.3 GHz), TDP 35W, two 2GB DDR3 RAM, 802.11a/b/g/n/ac, PCAP touch screen, 2-megapixel camera, microphone, R10 |
| AFL3-W15B-H81-i3/PC/4G-R10 | Wide 15.6” 300 cd/m² 1366 x 768 panel PC with Intel® H81 chipset, Intel® Core™ i3-4330TE dual-core processor (2.4 GHz), TDP 35W, two 2GB DDR3 RAM, 802.11a/b/g/n/ac, PCAP touch screen, 2-megapixel camera, microphone, R10 |
| AFL3-W15B-H81-i5/PC/4G-R10 | Wide 15.6” 300 cd/m² 1366 x 768 panel PC with Intel® H81 chipset, Intel® Core™ i5-4570TE dual-core processor (2.7 GHz), TDP 35W, two 2GB DDR3 RAM, 802.11a/b/g/n/ac, PCAP touch screen, 2-megapixel camera, microphone, R10 |
