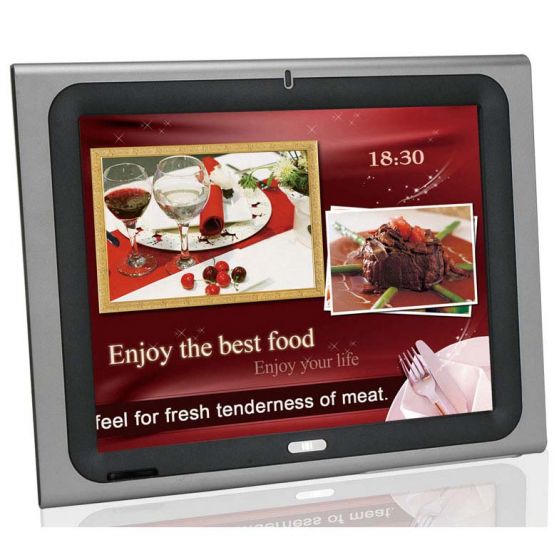

AFL-19i-HM55 (Fanless All In One Panel PC)
- 19” multi-functional panel PC with touchscreen features Intel® Core™ i7/i5/i3 mobile processor with Intel® HM55 chipset
- DDR3 1066MHz system memory up to 8GB
- Built-in HSUPA module for mobile connection (Optional)
- HDMI port/Display Port delivers a high image quality on the second display
- IP 64 compliant front panel
- IEI One Key Recovery solution allows you to create rapid OS backup and recovery
| LCD Size | 19” |
| Max Resolution | 1280 x 1024 |
| Brightness (cd/㎡) | 350 |
| Contrast Ratio | 1000:1 |
| LCD Color | 16.7 M |
| Pixel Pitch (mm) | 0.294(H) x 0.294(V) |
| Viewing Angle (H-V) | 170º / 160º |
| Backlight MTBF | 50000 hrs (LED backlighting) |
| SBC Model | AFLMB2-HM55-R10 |
| CPU | Intel® Core™ i7/i5/i3/Celeron® Processor |
| Chipset | Intel® HM55 |
| RAM | Two 204-pin 800/1066 DDR3 dual-channel SODIMMs supported (system max. 8GB) |
| I/O Ports and Switches | 1 x RS-232 COM Port 1 x RS-232/422/485 COM Port 2 x RJ-45 for Giga LAN 4 x USB 2.0 1 x Power Switch 1 x Reset Button 1 x Audio Port (Line-out) 1 x VGA 1 x Power Jack 1 x HDMI Port |
| SSD | SATA SSD |
| Watchdog Timer | Software programmable supports 1~255 sec. system reset |
| Audio | AMP 3W + 3W (internal speakers) |
| Wireless | 1 x Wireless LAN 802.11b/g/n Module (internal PCIe Mini card interface) Telec certified |
| Touch Screen | Resistive Type 5-Wire (Touch controller IC is on board) |
| Drive Bay | 1 x 2.5” SATA HDD bay |
| Construction Material | ABS + PC plastic front frame |
| Mounting | Panel, Wall, Stand and Arm VESA 100mm x 100mm |
| LED Function | 1 x Power on/off LED on front panel |
| Front Panel Color | Sliver (877U) & Gray (ABSA2037) |
| Dimension (WxHxD) (mm) | 470 x 383 x 79 |
| Operating Temperature (°C) (Ambient with air flow) | 0°C ~ 50°C |
| Storage Temperature (℃) | -20°C ~ 60°C |
| Weight | 6.2 Kg |
| IP Level(front panel) | Front frame IP64 |
| Power Adapter | P/N: 63040-010096-RS 96W Power Adapter Input: 90VAC~264VAC, 50 / 60 Hz Output: 12VDC |
| Power Requirement | 12 VDC |
| Power Consumption | 88W (Intel® T7500, 2GB memory, 80G HDD) |
| EOL Issued for AFLx-BT-KITxx, See AFLx-BT-KITxx Series EOL for Details | |
| AFL-19i-HM55-P45/R/1G-R21 | 19" 450cd/m² SXGA panel PC with Intel® Celeron P4500 1.86G CPU, 1GB DDR3 RAM, 802.11 b/g/n wireless module, touch screen, R20, RoHS |
| AFL-19i-HM55i3-35/R/2G-R21 | 19" 450cd/m² SXGA panel PC with Intel® Core™ i3-350M 2.26G CPU, 2GB DDR3 RAM, 802.11 b/g/n wireless module, touch screen, R20, RoHS |
| AFL-19i-HM55i5-52/R/2G-R21 | 19" 450cd/m² SXGA panel PC with Intel® Core™ i5-520M 2.4G CPU, 2GB DDR3 RAM, 802.11 b/g/n wireless module, touch screen, R20, RoHS |
| AFL-19i-HM55i7-62/R/2G-R21 | 19" 450cd/m² SXGA panel PC with Intel® Core™ i7-620M 2.66G CPU, 2GB DDR3 RAM, 802.11 b/g/n wireless module, touch screen, R20, RoHS |
| NOTE: | Order HSUPA02 for HSUPA Function |
| ACCESSORIES | |
| AFLWK-19 | Wall Mount Kit |
| AFLPK-19B | Panel mounting kit |
| STAND-A19 | 12.1”~19" VESA 100x100mm PPC/monitor stand, support up to 7.5KG, Silver color, RoHS |
| STAND-B19-RS | 15”~19" VESA 75x75mm/100x100mm PPC/monitor Stand, support from 2.7KG to 7.3KG, Black color,RoHS |
| STAND-C19 | 15" ~ 19" VESA 100x100mm, 75x75mm PPC/Monitor Stand, support up to 15kg, Black color, RoHS |
| STAND-210-RS-R11 | LCD Monitor Stand; VESA 75/100, 7kg~10kg, RoHS |
| ARM-11-RS | Flat Panel Monitor Arm, VESA 75/100, 3kg~6kg; RoHS |
| ARM-31-RS | Flat Panel Monitor Arm, VESA 75/100, 7kg~14kg; RoHS |
| AFLP-19AMSR-U-R11 | Magnetic Stripe Reader |
| AFL-BT-KIT01-R10 | Bluetooth Module |
| AUPS-B10-R10 | DC 12V Input UPS |
| AUPS-B20-R10 | DC 9-36V Input UPS |
| AFLSD-19-HM55-2G-XPE-R12 | Windows XPE, 2GB SATA SSD |
| AFLSD-19-HM55-4G-WES7E | Windows 7 Embedded, 4GB SATA SSD |
