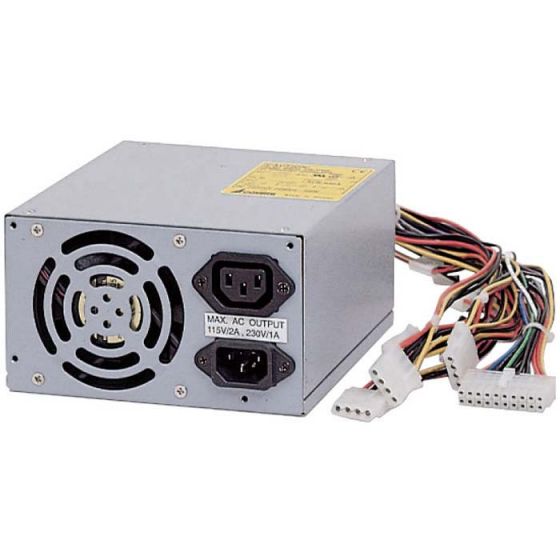

ACE-828A-RS
- 280W ATX PS/2 Type Power Supply
- 100% Meet RoHS Compliance
- High efficiency and reliability
| INPUT | |||
| Voltage | 90 ~ 130 VAC 180 ~ 260 VAC |
||
| Frequency | 47~63 HZ | ||
| OUTPUT | |||
| Voltage | Min. load | Max. load | |
| +3.3V | 0A | 8A | |
| +5V | 2A | 25A | |
| +12V | 0.1A | 10A | |
| -5V | 0A | 0.5A | |
| -12V | 0A | 0.5A | |
| -5Vsb | 0A | 0.72A | |
| GENERAL | |||
| Watt | 280 | ||
| PFC | None | ||
| Efficiency | 65% | ||
| MTBF | 110,000hrs | ||
| Output Connectors | 20 Pin ATX x1, HDD/CDROM x5, FDD x2 | ||
| Temperature | -20 ~ 70˚C (Operating) (40 ~ 70˚C derating curve) -40 ~ 75˚C (Storage) |
||
| ACE-828A-RS | 280W AC-DC PS/2 ATX RoHS Power Supply |
