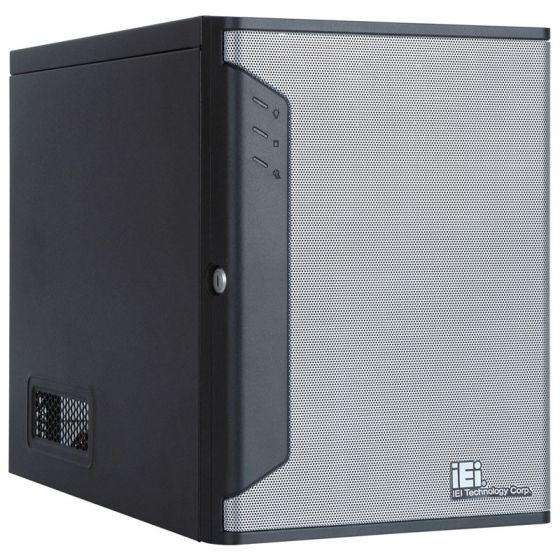

EBC-3680
Mini-ITX embedded chassis, compatible two 2.5" HDD, 4 x 3.5'' H/S HDD, w/o power, RoHS
- Small chassis for Mini-ITX form factor - Similar A4 size (front view)
- Excellent in thermal & acoustic simulation
- Uses low noise PWM fan
- 4 x Removable 3.5" HDD drive bay (Front side) and 2 x Internal 2.5" HDD drive bay
- Additional air duct
- Side door security alert - Intrusion switch
| Platform | Case Only |
| Color | Cool Gray |
| Dimensions (WxDxH) | 200 x 337 x 272 mm |
| System Fan | 1 x 12cm |
| Chassis Construction | Aluminum |
| Motherboard Model | KINO-AQ870 KINO-AQ670 KINO-AH611 KINO-AH612 KINO-G410 KINO-CVR-D27002 KINO-PV-D4253/ D5253 KINO-945GSE KINO-945GSE3 |
| M/B Size | Mini-ITX (170 x 170mm) |
| Hard Drive | 4 x 3.5" SATA HDD space |
| CompactFlash® | N/A |
| SD Card | refer to SBC |
| PS2 (KB/MS) | refer to SBC |
| USB 3.0 | refer to SBC |
| USB 2.0 | refer to SBC |
| Ethernet | refer to SBC |
| RS-232 | refer to SBC |
| RS-232/422/485 | refer to SBC |
| LPT | refer to SBC |
| Display | refer to SBC |
| Resolution | refer to SBC |
| Audio | refer to SBC |
| Wireless | refer to SBC |
| Video Capturing | refer to SBC |
| Mini-PCIe/PCI | refer to SBC |
| Expansions | 1 x low profile expansion slot (Optional) |
| Power Input | 90~264V AC |
| Power Supply | ACE-A130B |
| Mounting | N/A |
| Operating Temperature | 0°C ~ 50°C |
| Operating Shock | Half-sine wave 3G, 11ms 3 shocks per axis |
| Operating Vibration | MIL-STD-810F 514.5C-1 |
| Weight (Net/Gross) | 1kg/3kg |
| EBC-3680-R10 | Mini-ITX embedded chassis, compatible two 2.5" HDD, 4 x 3.5'' H/S HDD, w/o power, black, RoHS |
| ACE-A130B-R10 | 300W AC-DC PS/2 ATX power supply with ErP/PFC, 80 PLUS bronze certified |
